RFID  frequency identification is a non-contact object recognition technology, it can automaticlly recognize target and get relevant data through rf signal, so there are so many interactive projects which need to use RFID to achieve object recognition.

Supported cards :

ISO 14443A/MIFARE®、MIFARE® Classic 1K、MIFARE® Classic 4K

Special Features :

1、Complete Read/Write module with built-in transceiver antenna

2、Auto checks for presence of a tag and upload ID need no command

3、Auto read/write data from RFID tag

4、Auto increment/decrement value when reading card

5、Easy LOCK/UNLOCK function to protect RFID information

6、Encrypted EEPROM to store configured data and up to 40 groups of keys

7、Contactless operating frequency 13.56 MHz

8、Supports ISO 14443A/MIFARE®、MIFARE® Classic 1K、MIFARE® Classic 4K

9、UART、SPI  Interface, baud rate 19200bps

10、Fast data transfer: contactless communication up to 106KHz

11、Secure Encrypted contactless communication

12、Ideal for emoney,secure access and fast data collection applications

13、Typical Operating Distance: 0~~100 mm

14、Operating Voltage DC：3.0-5.5V（fully compatible with 3.3v and 5v）

15、Watchdog timer

16、1 LED indicator, 3 I/O pins for external use

17、512 bytes eeprom

18、Unique serial number on each device

19、Size : 40mm × 20mm × 6mm

20、Weight : 12g

21、Work Temperature : -20 ℃ － + 70 ℃

Interface  Options :

1、UART  Interface

2、SPI  Interface

Please choose the interface you want to order and the default interface mode is UART Interface.

Application：

The working  principle of RFID is actually not complex, once the tag into the working area of card reader, card reader can read the data of tag by magnetic field generated by the antenna.

According to the specific use of different scene, we can use different types of tags, different types of tags have different range :



In the process of actual using, we can firstly use the reader to read the ID of different tags.

After connection, we use the serial debugging tool to open Serial Dongle corresponding Serial port, the baud rate is set to 19200, then send reading card order as HEX format : AA BB 02 20 22 (totally 5 bytes) :
 But  If there are cards within the working area of RFID module, RFID module red LED will be lighted, at the same time return order as HEX format through serial port : AA BB 06 20 5E 97 25 C7 0D (9 byte), and then  5E 97 25 C7 is the tag ID. Different tags returns different ID value, and we just distinguish different objests through different ID value.

When geting the corresponding tags ID value, then we can recognize on Arduino, about the hardware connection, we still use the COM interface of Arduino sensor shield to connect RFID mdule with Arduino.



The corresponding Arduino code shown as below, the test tag ID is 5E 97 25 C7, when Arduino detected the corresponding tag, will light the LED on 13 digital I/O port of Arduino, and last for 1 second :

Test Code Start :

int val = 0;
int ledPin = 13;
int status = 0;
unsigned char searchCMD[] = {0xAA, 0xBB,0x02, 0x20, 0x22};
unsigned char searchRES[4];

void setup()
{
  Serial.begin(19200);
  pinMode(13, OUTPUT);
}

int searchCard()
{
  Serial.write(searchCMD, 5);
  delay(100);
  status = 0;
  while(true) {
    if (Serial.available() > 0) {
      val = Serial.read();

      switch (status) {
        case 0:  // parse 0xAA
          if (val == 0xAA) status = 1;
          break;
        case 1: // parse 0xBB
          if (val == 0xBB) status = 2;
          else return -1;
          break;
        case 2:
          if (val == 0x06) status = 3;
          else return -1;
          break;
        case 3:
          if (val == 0x20) status = 4;
          else return -1;
          break;
        case 4:
        case 5:
        case 6:
        case 7:
          searchRES[status - 4] = val;
          status ++;
          break;
        case 8:
          return 0; // read successfully
          break;
        default:
          return -1;
          break;
      }

    }
  }
}

void loop()
{
  if (searchCard() != -1) {
    if (searchRES[0] == 0x5E && searchRES[1] == 0x97 && searchRES[2] == 0x25 && searchRES[3] == 0xC7) {
      digitalWrite(13, HIGH);
      delay(1000);
      digitalWrite(13, LOW);
      delay(1000);
    }
  }
}


Item List：

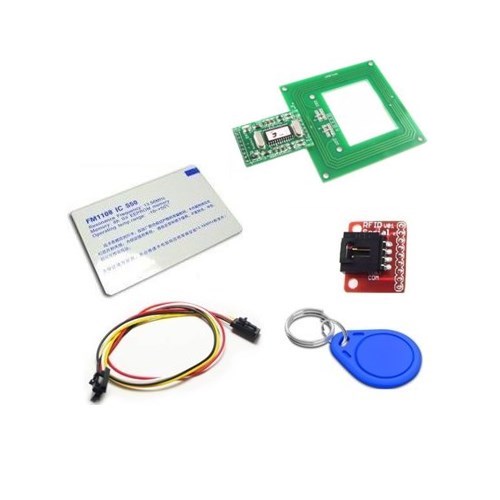

1、13.56MHz UART / IIC / SPI RFID Module With External Antenna ×1

2、Non-Welded Commom Connector Module  ×1

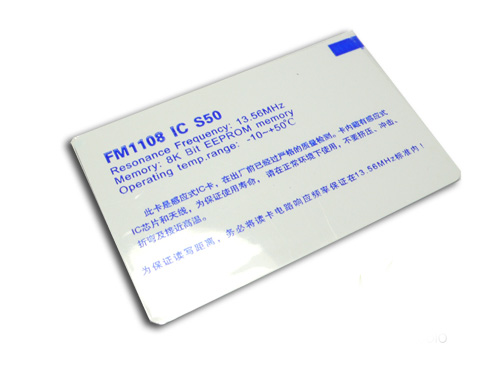

3、13.56MHz RFID Card ×1

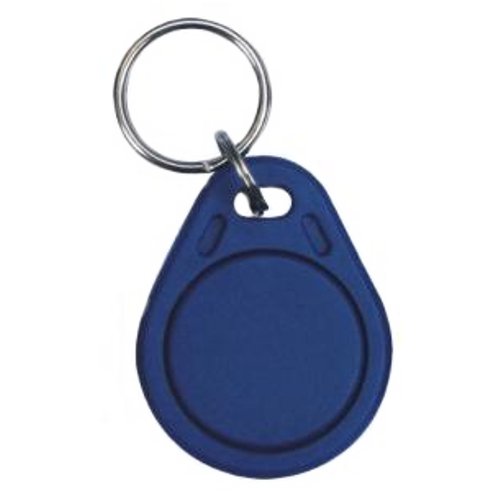

4、13.56MHz RFID Key IC Tag - A   ×1

5、Arduino I2C/COM Cable 30cm  ×1



Document Download：


Click to download the UART datasheet

Click to download the SPI datasheet

Click here to download the SDK
